特點：
模塊化可拆卸式結構設計,節省空間輿清潔方便。
采用通用型PLC控制器,確保性能可靠,維護簡便。
采用先進的控制算法,自主優化,自動調校補償及震動防止功能,保證最佳的配料精度。
標淮機型最多可處理四種組份(六組份以上可定制)。
彩色圖形式顯示,觸摸屏式操作,多種語言供你選擇。
具有配方存儲功能,最多可存儲100組以上配方。
分級安全密碼控制奧報警歷史記録功能。
控制器標淮配置USB20接日,可將混料配比數據保存到U盤中,便于生產質量控制。
具備聲、光報警器,便于設備員快速淮確的達到故障機器現場。
所有與原料接觸的部分都由不銹鋼材料制成,防止原料被污染。
可直接安裝在機器上或選配腳架安裝在機器旁(含氣動式卸料)。
All parts accessible for easy cleaning.
Suitable for processing up to four components simultaneously.
PLC controller, reliable performance, convenient maintenance.
Adopting advanced control algorithm, autonomous optimization, automatic calibration and shaking prevent function, ensure the best accuracy.
Color chart shown, touch screen operation, three languages on-line switching.
Up to 100 recipes can be stored for later use.
Multilevel password protection and historical alarm record.
USB2.0 interface for saving recipe data to flash disk, Facilitate the Quality Management.
With sound and light alarm, facilitate operator quickly and accurately reach fault machine area.
All raw material contact parts are made by stainless steel,prevent the materials being polluted.
Can be directly mounted on the machine or optional feet frame installed in machine side.
選配件：
料斗低料位警報開關
吸料控制/模塊
氣動式卸料閥(用于直接安裝機臺上方平臺或架子〕
腳架、氣動式卸料閥、儲料桶及吸料盒(適用腳架安裝型）

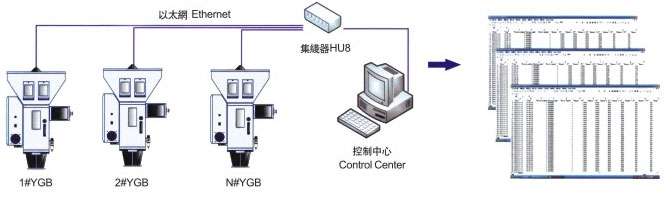

以太網接口、MODEUS、PROFIBUS通訊模瑰,可實現遠程監控,并與擠出機、注塑機等主機進行的數據交換。
Hopper low material level alarm switch.
Automatic loading control module.
Pneumatic slide gate( Suitable for machine mount model).
Floor stand, pneumatic side gate, storage bin and suction box should be optionally purchased for floor mounting.
Ethernet interface, MODBUS PROFIBUS communication module, which can realize remote monitoring, or with extruder, injection molding machine to transfer data.

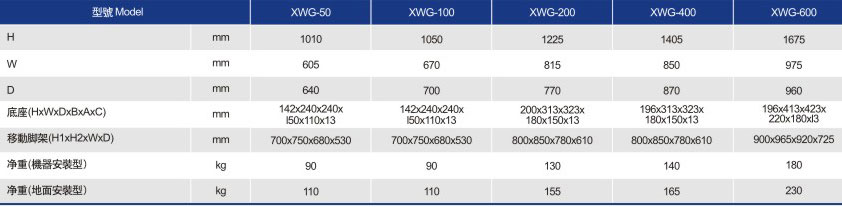

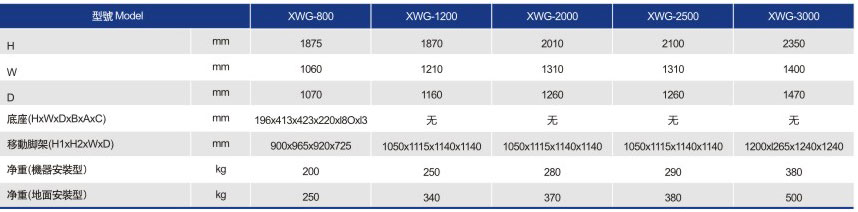

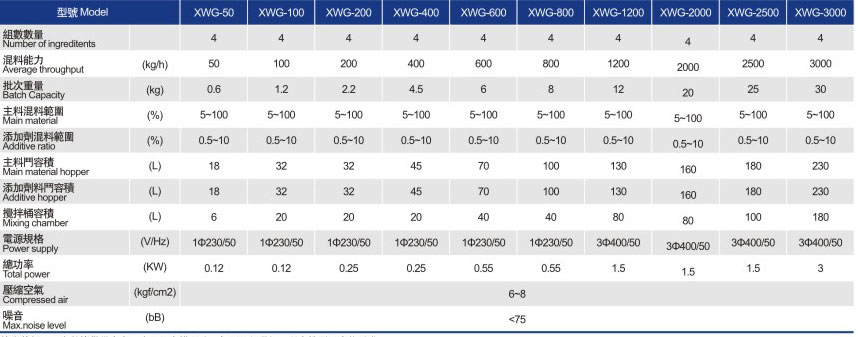

規格表：
備注：
混合配比誤差是指各組份的設定百分比與實際百分比的差值。
標淮閥門不適用于粉體計量。
以上最大處理量和混合配比誤差數是以堆橫密度O.8、直徑周34mm的顆粒均勻原料以速續運轉方式測量所得的數據。
Dos ng accuracy arerefer to each ingredient accuracy.
Standard valves are not su table powder dosing.
Max outouief each model and dosing accuracy are based on the data from bulk density De ctia s-d mm pellets in a testicnteriaiof con tinlnus running.
