特點：
一對二/四供料翰送,可大幅節省成本。
下吸風式設計,濾清器下搭配旋風擋板奧分離式集桶,有效地減輕濾清器的負荷。
主機標淮配備警報燈爲報警裝置,另提供蜂鳴器供選配。
主機與料斗分離安裝裝,操作簡單,美觀耐用。
可搭配YMH(真空料斗)或YVH(電眼料斗)使用,滿足車間現場多種組合使用。
采用不銹鋼料斗,耐磨不污染原料。
分離式集塵桶,方便清除粉塵。
料斗配備膜片閥,使落料更爲順暢。
采用歐規安全插頭,使用時安全可靠。
料斗過濾網采用目數30目,線徑0.mm的不銹鋼絲制作,當翰送原料中回收料占30%及以上時,可選配目數14日,徑爲0.5mm的不銹銅絲制作的過濾網,增加使用壽命。

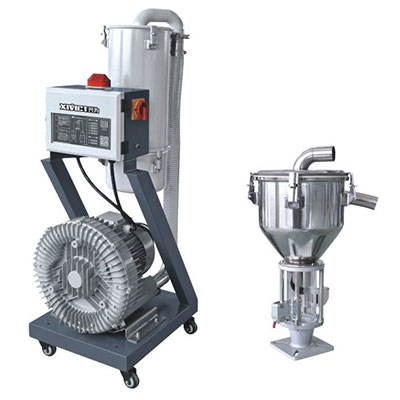

A pair of two/four feeder, can greatly save the cost.
Under suction type design, filter, collocation cyclone baffle and separation type dust collecting barrel, effectively reduce the load of filter.

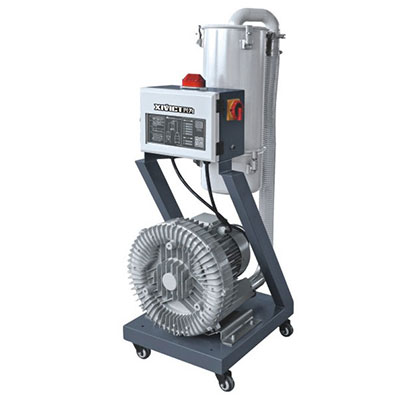

Host standard equipped with alarm lights for the alarm device, the other to provide a buzzer for matching.
Separation and installation of the main engine and the hopper, the operation is simple, beautiful and durable.

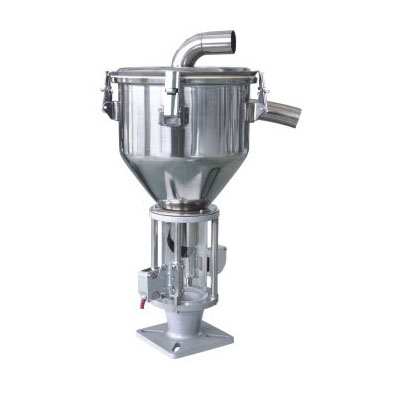

Can XMH collocation(vacuum hopper)or XVH (electric eye hopper), to meet the use of various combinations of workshop.
Adopt stainless steel hopper, wear resistant non polluting material.
Separation type dust collecting bucket, which is convenient for removing dust.
Hopper equipped with diaphragm valve, so that the material is more smooth.
Using the European safety plug, the use of safe and reliable.
Using hopper filter mesh for 30 mesh, wire diameter is 0.IMM stainless steel wire production, when conveying the feedstock recycling material accounted for 30% and above, the optional mesh for 14 orders, wire diameter is 0.5mm stainless wire making filtering net, increase the service life.

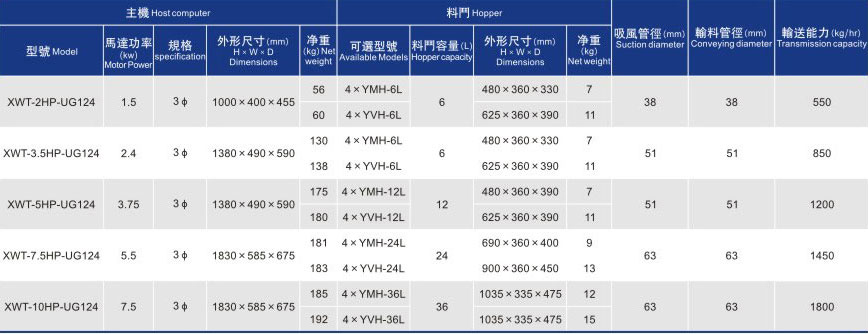

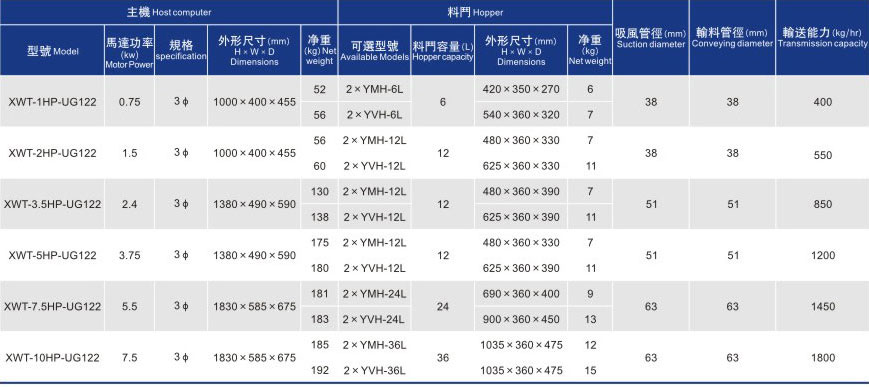

規格表：
備注：
“122”表示裝用一對二的送料功能,“124”表示裝用一對二的送料功能。
“YMH”表示真空料斗,“YVH”表示電眼料斗。
可選配ACF-1旋集摩器(用于YAL-1HP-UG或YAL-2HP-UG主機)。
翰送能力測試件:比重的0.65,直徑3-5mm塑膠顆粒,以垂直高度4M,水平距離5M爲測試標淮所得。
機器電壓規格:3中,380V,50Hz。
122"means that with a pair of two of the feeding function, 124" means that with a pair of two feeding function.
"YMH"means"YVH"said vacuum hopper, hopper electric eye.
optional ACF-1 cyclone dust collector(applicable to YAL-1HP-UG or YAL-2HP-UG host).
transport capacity test conditions: the proportion of about 0. 65, the diameter of 3-5mm plastic particles, with a vertical height of 4M, the level of 5M for the test standard.
the machine voltage specifications:3 phi,380V, 50HZ.
原理：
“一對二/四”分離式自動吸料機系列,適用于塑料顆粒的輸送,主要利用馬達運轉產生真空,使料桶內產生壓力差來輸送塑料。
A pair of two four separation type automatic material feeding machine series, suitable for the transport of plastic particles. the main use of motor operation to produce a vacuum, so that the material can produce a pressure difference to transport the plastic.
